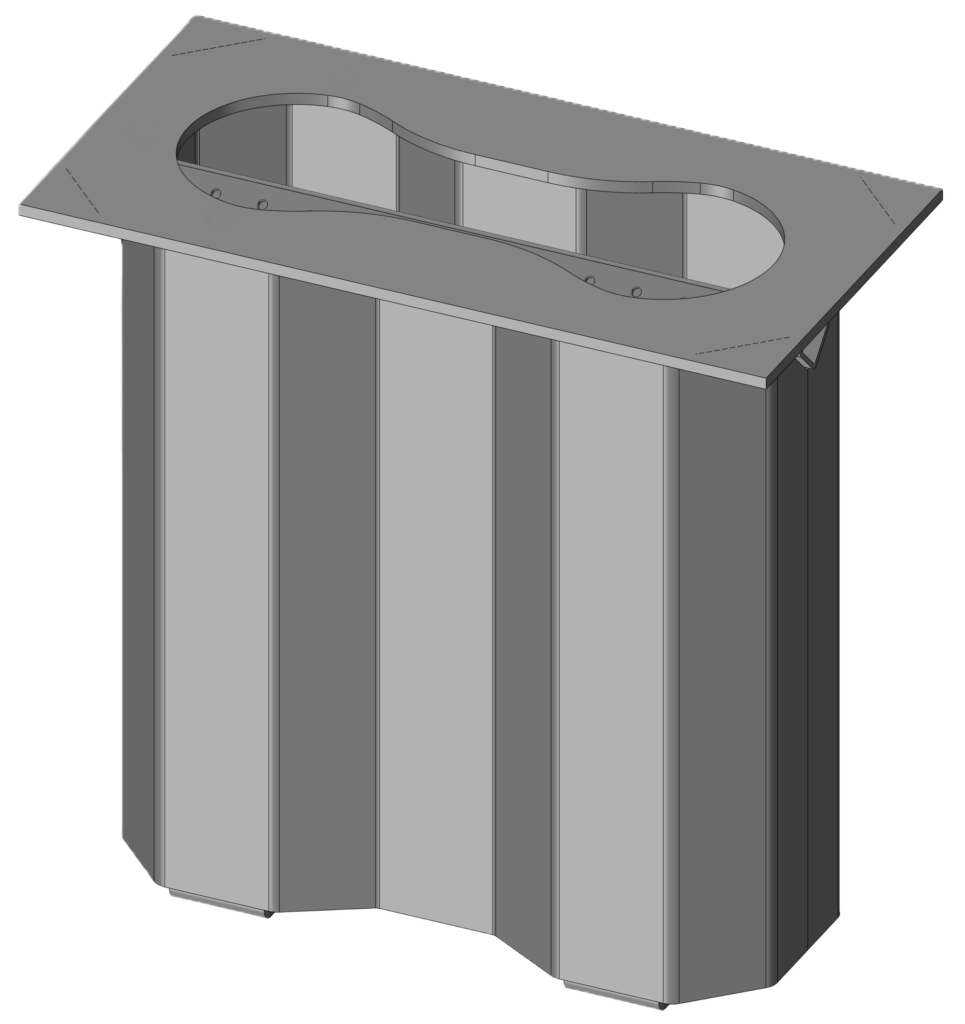

Suitable for heat storage stoves made of soapstone or refractory materials, prefabricated or built on site with weight range of 1000 to 2200 kg
Material
Fuel
Nominal pellet load
Nominal power output based on combustion time
Power output with heat storage for 12 hours cycle
Power output with heat storage for 8 hours cycle
Combustion time
(AISI 304 – AISI 316L)
Wood pellet (∅ 6 mm)
11 kg (eq. 13 kg wood logs)
24,3 kW
4,0 kW
6,1 kW
Up to about 2 h
Suitable for heat storage stoves made of soapstone or refractory materials, prefabricated or built on site with weight range of 500-1200 kg
Material
Fuel
Nominal pellet load
Nominal power output based on combustion time
Power output with heat storage for 12 hours cycle
Power output with heat storage for 8 hours cycle
Combustion time
(AISI 304 – AISI 316L)
Wood pellet (∅ 6 mm)
7,5 kg (eq. 10 kg wood logs)
16,5 kW
2,8 kW
4,1 kW
Up to about 2 h
Suitable for standalone stoves made of cast iron, metal sheets, soapstone or other materials, prefabricated or built on site with weight range of 400-800 kg
Material
Fuel
Nominal pellet load
Nominal power output based on combustion time
Power output with heat storage for 8 hours cycle
Power output with heat storage for 6 hours cycle
Combustion time
(AISI 304 – AISI 316L)
Wood pellet (∅ 6 mm)
4,5 kg (eq. 6 kg wood logs)
10,0 kW
2,5 kW
3,3 kW
Up to about 2 h

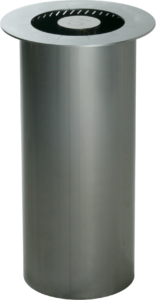

Suitable for standalone stoves made of cast iron, metal sheets, soapstone or other materials, prefabricated or built on site with weight up to 500 kg
Material
Fuel
Nominal pellet load
Nominal power output based on combustion time
Power output with heat storage for 6 hours cycle
Power output with heat storage for 4 hours cycle
Combustion time
(AISI 304 – AISI 316L)
Wood pellet (∅ 6 mm)
3,8 kg (eq. 5 kg wood logs)
5,6 kW
2,8 kW
4,2 kW
Up to about 3 h
Suitable for standalone stoves made of cast iron, metal sheets, soapstone or other materials, prefabricated or built on site with weight range of 150-500 kg
Material
Fuel
Nominal pellet load
Nominal power output based on combustion time
Power output with heat storage for 6 hours cycle
Power output with heat storage for 4 hours cycle
Combustion time
(AISI 304 – AISI 316L)
Wood pellet (∅ 6 mm)
3,8 kg (eq. 5 kg wood logs)
5,6 kW
2,8 kW
4,2 kW
Up to about 3 h
